NWinfo

NWinfo is a Win32 program that allows you to obtain system and hardware information.

Features

Obtain detailed information about SMBIOS, CPUID, S.M.A.R.T., PCI, EDID, and more.
Support exporting in JSON, YAML, and LUA table formats.
Gathers information directly without relying on WMI.
Compatible with Windows XP.

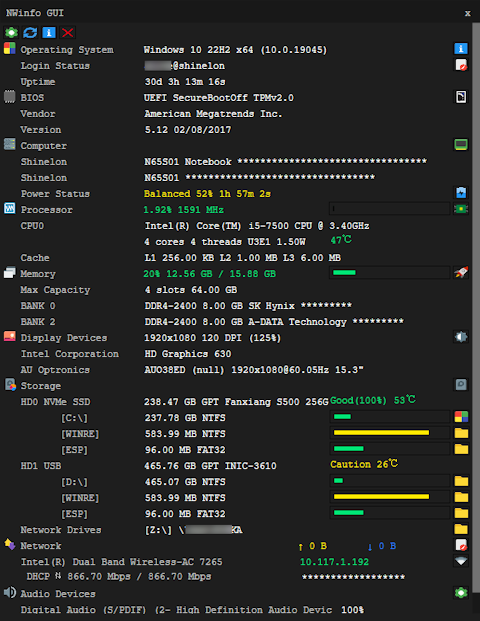

GUI (gnwinfo)

Preview

CLI (nwinfo)

Usage

.\nwinfo.exe OPTIONS

Example Command

.\nwinfo.exe --format=json --output=report.json --cp=UTF8 --sys --disk --smbios --net

This command exports system, disk, SMBIOS, and network information to report.json in JSON format.

General Options

–format=FORMAT
Specify output format.
FORMAT can be YAML (default), JSON and LUA.
–output=FILE
Write to FILE instead of printing to screen.
–cp=CODEPAGE
Set the code page of output text.
CODEPAGE can be ANSI and UTF8.
–human
Display numbers in human readable format.
–debug
Print debug info to stdout.
–hide-sensitive
Hide sensitive data (MAC & S/N).

Hardware Details

–cpu
Print CPUID info.
–net[=FLAG,...]
Print network info.
- GUID
  Specify the GUID of the network interface, e.g. {B16B00B5-CAFE-BEEF-DEAD-001453AD0529}
- FLAGS
  ACTIVE Exclude inactive network interfaces.
  PHYS Exclude virtual network interfaces.
  ETH Include Ethernet network interfaces.
  WLAN Include IEEE 802.11 wireless addresses.
  IPV4 Show IPv4 addresses only.
  IPV6 Show IPv6 addresses only.
–acpi[=SGN]
Print ACPI info.
SGN specifies the signature of the ACPI table, e.g. FACP (Fixed ACPI Description Table).
–smbios[=TYPE]
Print SMBIOS info.
TYPE specifies the type of the SMBIOS table, e.g. 2 (Base Board Information).
–disk[=FLAG,..]
Print disk info.
- PATH
  Specify the path of the disk, e.g. \\.\PhysicalDrive0, \\.\CdRom0.
- FLAGS
  NO-SMART Don’t print disk S.M.A.R.T. info.
  PHYS Exclude virtual drives.
  CD Include CD-ROM devices.
  HD Include hard drives.
  NVME Include NVMe devices.
  SATA Include SATA devices.
  SCSI Include SCSI devices.
  SAS Include SAS devices.
  USB Include USB devices.
–smart=FLAG,...
Specify S.M.A.R.T. features.
Features enabled by default: WMI, ATA, NVIDIA, MARVELL, SAT, SUNPLUS, IODATA, LOGITEC, PROLIFIC, USBJMICRON, CYPRESS, MEMORY, JMICRON, ASMEDIA, REALTEK, MEGARAID, VROC and ASM1352R.
Use DEFAULT to specify the above features.
Other features are ADVANCED, HD204UI, ADATA, NOWAKEUP, JMICRON3 and RTK9220DP.
–display
Print EDID info.
–pci[=CLASS]
Print PCI info.
CLASS specifies the class code of pci devices, e.g. 0C05 (SMBus).
–usb
Print USB info.
–spd
Print SPD info.
–battery
Print battery info.
–uefi[=FLAG,..]
Print UEFI info.
- FLAGS
  MENU Print UEFI boot menus.
  VARS List all UEFI variables.
–audio
Print audio devices.
–gpu
Print GPU usage.

System Information

–sys
Print system info.
–shares
Print network mapped drives and shared folders.
–public-ip
Print public IP address.
–product-policy[=NAME]
Print ProductPolicy.
NAME specifies the name of the product policy.
–font
Print installed fonts.

PowerShell Script for System Diagnostics

hw_report.ps1 is a PowerShell script designed to generate and display a detailed hardware and system report using nwinfo.

Notes

Windows 11

If the driver cannot be loaded properly, modify the following registry keys:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios\HypervisorEnforcedCodeIntegrity]
"Enabled"=dword:0000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard]
"EnableVirtualizationBasedSecurity"=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios\SystemGuard]
"Enabled"=dword:00000000

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\CI\Config]
"VulnerableDriverBlocklistEnable"=dword:00000000

Windows 7

For earlier versions of Windows 7, the driver may not work properly and requires a SHA1-signed certificate.

Windows XP

This project is compatible with Windows XP using YY-Thunks, but it may not retrieve some hardware information.

Licenses & Credits

This project is licensed under the Unlicense license.
